I-Beam

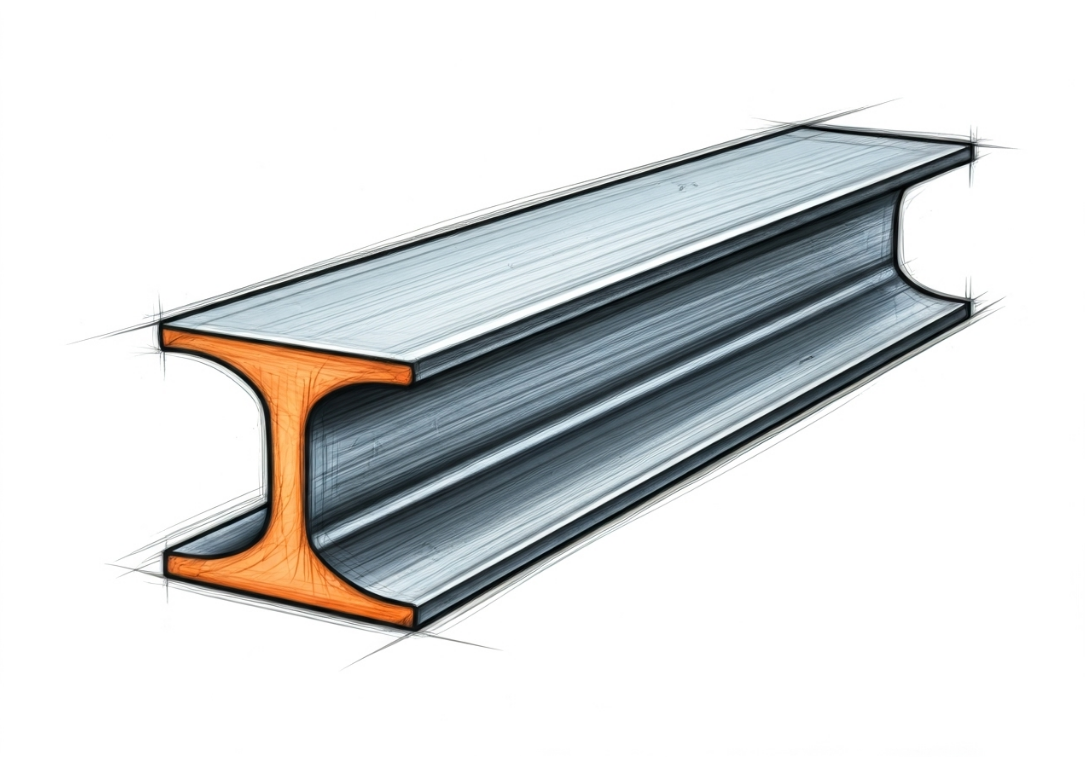

        I-beams (also known as H-sections) are important structural components commonly used in construction, serving as beams and columns. Their name comes from their distinctive cross-sectional shape, resembling the letter "I" or "H". Each I-beam consists of horizontal members called flanges and vertical members called webs, enabling it to effectively withstand various types of loads.
    Jinan Zunkai supplies high-quality structural steel I-beams in various sizes, lengths, and specifications to meet your project's diverse needs.
Advantages of I-beams
    I-beams are a popular choice for commercial buildings due to their high strength, efficiency, and affordability. From framing structures to critical supports, they are a durable solution for a wide range of building and engineering applications. The relatively lightweight design and compact footprint of I-beams make them easy to handle and install, often reducing the need for heavy support walls or columns.
    In addition to ease of fabrication, steel I-beams offer impressive load-bearing capacity. They effectively distribute weight from top to bottom, maintaining structural integrity with fewer beams. I-beams are typically up to 60 feet long and are commonly used to support spans from 30 to 100 feet.
Application Areas
    Steel I-beams are highly favored in the construction and engineering fields due to their high strength, good stability, wide range of applications, and cost-effectiveness. Their unique design allows them to withstand various stresses: the web resists shear forces, while the flanges possess excellent unidirectional bending performance. These characteristics make steel I-beams ideal for load-bearing applications, such as:
Commercial Buildings: Used for horizontal and vertical framing structures in buildings such as hospitals, parking lots, and skyscrapers
Residential Projects: Provides structural support for floor slab supports and lintels
Bridge Construction: Provides critical load-bearing strength for bridges and other infrastructure projects
Specifications
    I-beams typically have tapered flanges and a web that is wider than each flange. The following I-beam dimensions determine the load-bearing capacity, weight, and suitability for a particular application:
Depth (D): Total height of the I-beam
Flange Width (W): Horizontal width of the top and bottom flanges
Flange Thickness (T): Thickness of the flange
Web Thickness (t): Thickness of the portion perpendicular to the web
Weight per unit length: Typically measured in pounds per foot or kilograms per meter

 Jinan Zunkai offers the following structural steel grades for its I-beam products:
ASTM A36: This specification applies to carbon structural steel products used in bolted, riveted, or welded connections for building, bridge, and general structural applications.
ASTM A709: This specification applies to carbon and high-strength low-alloy steels for I-beams, reinforcing bars, and other profiles used in bridges.
ASTM A992: This specification covers rolled structural steel products used in bridge, building framing, and other structural applications.
ASTM A588: This standard applies to high-strength low-alloy structural steels primarily used in welded buildings and bridges, with a particular focus on improving durability and reducing weight.
ASTM A572: This specification covers five types of high-strength low-alloy steels used in welded, bolted, or riveted bridge structures.

Jinan Zunkai's I-beams
    I-beams are indispensable components in construction, bridges, parking lots, and other building applications. As a leader in the structural steel market, Jinan Zunkai supplies steel I-beams and other products to industries such as construction, infrastructure, power and telecommunications, renewable energy, and shipbuilding. We maintain a large inventory to meet various specifications and requirements of our customers. With advanced processing equipment, on-time delivery, and a commitment to customer satisfaction, you can trust Jinan Zunkai to provide you with high-quality structural steel I-beams.
