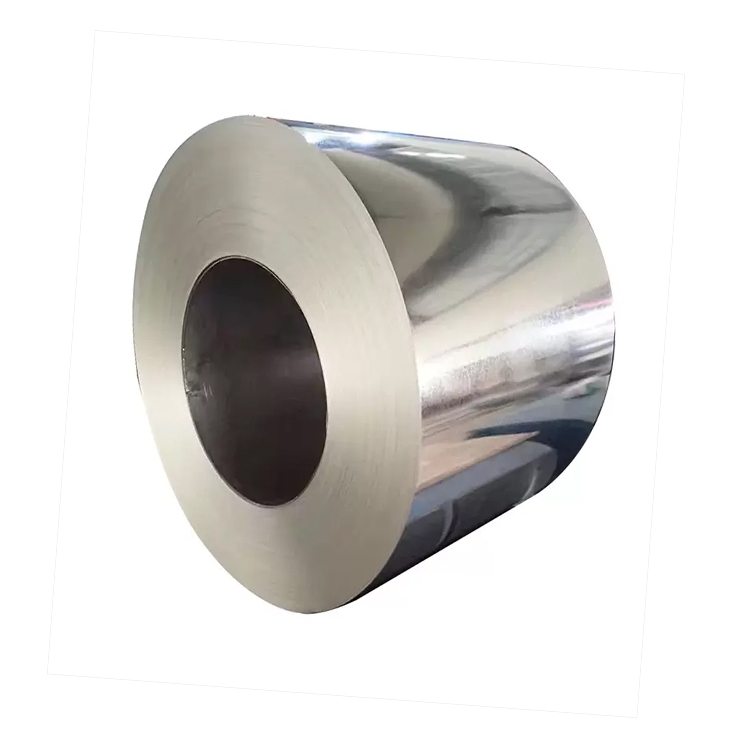

304L stainless steel coil is a low-carbon version of 304 stainless steel coil. The "L" in 304L can be understood as ultra-low carbon.
304L stainless steel coil has an ultra-low carbon content of ≤0.03%. It is not easy to precipitate chromium carbide after welding, which significantly reduces the risk of intergranular corrosion; it has excellent corrosion resistance in oxidizing acids (such as nitric acid) and weak corrosive media (water, atmosphere); it has high plasticity and formability in cold working processes; it is non-magnetic and resistant to high temperatures.

Email : contact@zunkaisteel.com
Phone/Whatsapp : +15169002039
Addess : Huaiyin District,Jinan City,Shandong,China.

GET A QUOTE

Description

0.4/0.6/0.5 430 2ba/N4 Stainless Steel Coil

Generally speaking, 304 and 304L stainless steel coils can be used for many of the same applications. The differences between them are usually small, so one is not considered more useful than the other.
304L stainless steel coils are widely used in the production of fields that require higher corrosion resistance, high weldability and good hygiene, such as chemical and energy, food and pharmaceutical, construction and decoration, electronics and home appliances, environmental protection and medical fields.
Generally speaking, 304 and 304L stainless steel coils can be used for many of the same applications. The differences between them are usually small, so one is not considered more useful than the other.
304L stainless steel coils are widely used in the production of fields that require higher corrosion resistance, high weldability and good hygiene, such as chemical and energy, food and pharmaceutical, construction and decoration, electronics and home appliances, environmental protection and medical fields.

Chemical Composition about stainless steel coil

Stainless Steel Coil/Sheet/Plate Information
Technique	Surface Finish	Grade Series	Thickness(mm)	Width(mm)
				Main Dimension
				20-850	1000	1219	1240	1250	1500
Hot Rolled	No.1 / 2E	201/304/316L	2.2-12.0	√	√	√	√		√
Cold Rolled	2B	201/304/316L	0.25-3.0	√	√	√	√	√	√
	2B	410S/430	410S/430	0.25-3.0	√	√	√		√
	No.4 /Hairline Mirror / Linen SB	201/304/316L	0.22-3.0	√	√	√	√	√	√
	No.4 /Hairline Mirror / Linen SB	410S/430	410S/430	0.25-3.0	√	√	√	√	√
	BA	201/304	0.2--1.8	√	√	√	√	√	√
	BA	410S/430	410S/430	0.25-3.0	√	√	√
	2BA	304/410S/430	0.25-2.0	√	√	√	√
If you need, we can customize the size according to your requirements

Grade	C	Si	Mn	P	S	Ni	Cr	Mo
201	≤0.15	≤0.75	5.5-7.5	≤0.06	≤0.03	3.5-5.5	16.0-18.0	-
202	≤0.15	≤1.0	7.5-10.0	≤0.06	≤0.03	4.-6.0	17.0-19.0	-
301	≤0.15	≤1.0	≤2.0	≤0.045	≤0.03	6.0-8.0	16.0-18.0	-
302	≤0.15	≤1.0	≤2.0	≤0.035	≤0.03	8.0-10.0	17.0-19.0	-
304	≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	8.0-10.5	18.0-20.0	-
304L	≤0.03	≤1.0	≤2.0	≤0.035	≤0.03	9.0-13.0	18.0-20.0	-
309S	≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	12.0-15.0	22.0-24.0	-
310S	≤0.08	≤1.5	≤2.0	≤0.035	≤0.03	19.0-22.0	24.0-26.0	-
316	≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	10.0-14.0	16.0-18.0	2.0-3.0
316L	≤0.03	≤1.0	≤2.0	≤0.045	≤0.03	12.0-15.0	16.0-18.0	2.0-3.0
321	≤0.08	≤1.0	≤2.0	≤0.035	≤0.03	9.0-13.0	17.0-19.0	-
630	≤0.07	≤1.0	≤1.0	≤0.035	≤0.03	3.0-5.0	15.5-17.5	-
631	≤0.09	≤1.0	≤1.0	≤0.030	≤0.035	6.50-7.75	16.0-18.0	-
904L	≤2.0	≤0.045	≤1.0	≤0.035	-	23.0-28.0	19.0-23.0	4.0-5.0
2205	≤0.03	≤1.0	≤2.0	≤0.030	≤0.02	4.5-6.5	22.0-23.0	3.0-3.5
2507	≤0.03	≤0.80	≤1.2	≤0.035	≤0.02	6.0-8.0	24.0-26.0	3.0-5.0
2520	≤0.08	≤1.5	≤2.0	≤0.045	≤0.03	0.19-0.22	0.24-0.26	-
410	≤0.15	≤1.0	≤1.0	≤0.035	≤0.03	-	11.5-13.5	-
430	≤0.12	≤0.75	≤1.0	≤0.040	≤0.03	≤0.60	16.0-18.0	-

Product Parameters

ITEM	304L Stainless Steel Coil
Brand	RONSCO,BAOSTEEL, JISCO, TISCO, etc.
Grade	201.202.301.302.304.304L.310S.316.316L.321.430.430A.309S.2205.2507.2520.430.630.631 .410.440.904Lect. Or Customized
Certificate	SGS,BV,IQI,TUV,ISO,etc
Length	As Customer requirements
Surface	No.1, 2B, BA, 8K Mirror, Hairline,satin, Embossed,brush,No.4,HL,matt,pvc film,laser film.
Standard	GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
Package	Standard export sea-worthy packing or customized
MOQ	5 Ton

Surface treatment

Surface Finished	Characteristics	Characteristics
NO.1	Finished by hot-rolling, smoother and pickling, characterized by white pickled surface.	Chemical industry equipment, Industrial tanks.
2B	Finished by anneal treatment, pickling after cold rolling, followed by skin pass line to more brighter and smoother surface.	General application medical instruments, Tableware.
BA	Bright anneal treatment after cold rolling.	Kichen utenstil, Kitchen ware,Architectural purpose.
NO.4(Satin)	Finished by incontinuous linear brushing	Architecture,industries,Escalators, Kitchen ware, Vehicles.
Hairline	Finished by continuous linear brushing	Architecture,industries,Escalators, Kitchen ware, Vehicles.
8K(mirror)	A mirror-like reflective surface by polishing with finer abrasives over 800 mesh.	Refletor, Mirror, Interior- Exterior decoration for building.

Mechanical Properties

Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
≥ 520	≥ 205	≥ 40	≤ 187HB ;≤ 90HRB;≤ 200HV

Physical Performance

Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10^-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(ΜΩ. cm)
8.03	193	16.9	16.2	72
