| Parameter | Description |
|---|---|
| Product Name | Colored Stainless Steel Plate |
| Type | Plate / Coil |
| Thickness | 0.3mm – 3.0mm (common), up to 200mm (custom) |
| Length | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm, etc. |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm |
| Standard | ASTM, AISI, JIS, GB, DIN, EN |
| Surface | BA, 2B, NO.1, NO.4, HL, 8K, Mirror / Brushed / Embossed |

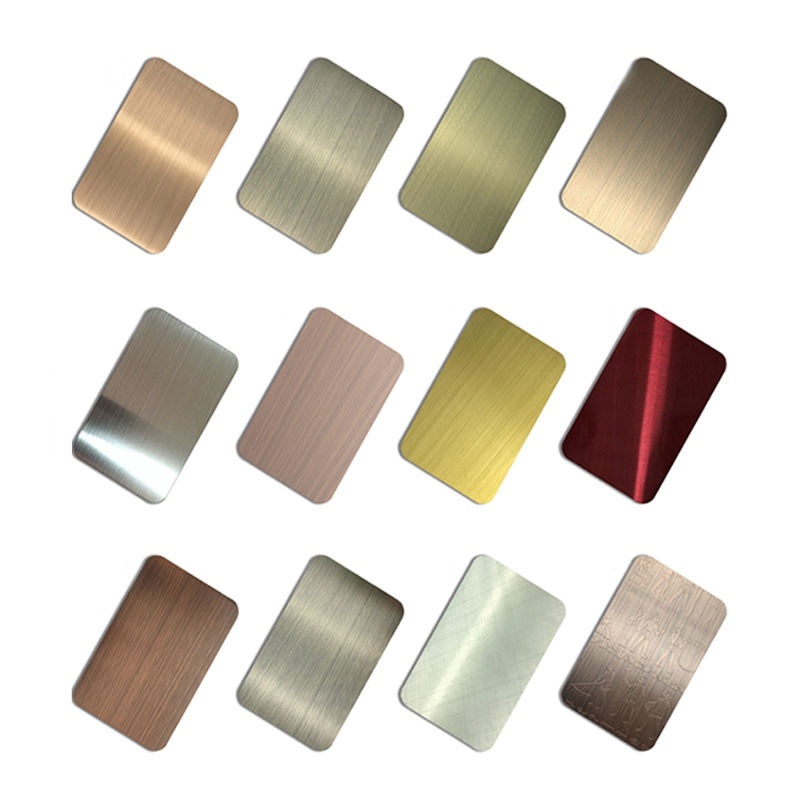

| Color Options | Titanium Gold, Rose Gold, Black, Bronze, Blue, Champagne, Copper, Custom RAL/Pantone |
| Coloring Technology | PVD Coating, Electrochemical Coloring, Spray Painting, PVDF |
| Scope of Application | Architectural decoration (elevators, walls, ceilings), kitchen cabinets, signboards, automotive trim, escalators, home appliances, bathroom hardware |
| Certificate | ISO, SGS, BV, etc. |
| Production Technology | Cold Rolling / Hot Rolling + Coloring Process |
| Edge Processing | Edging, Trimming, Deburring |

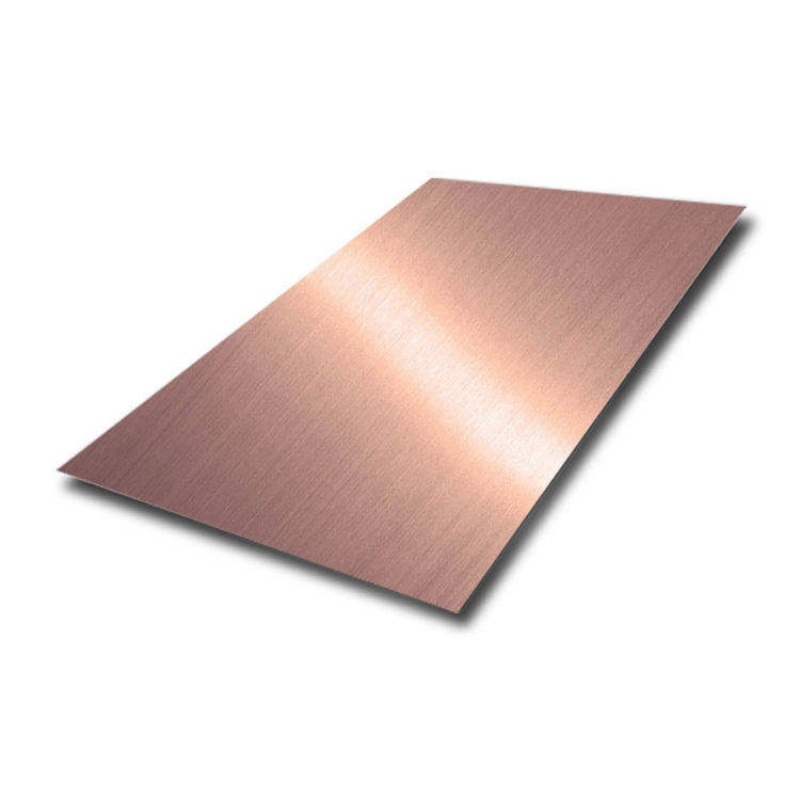

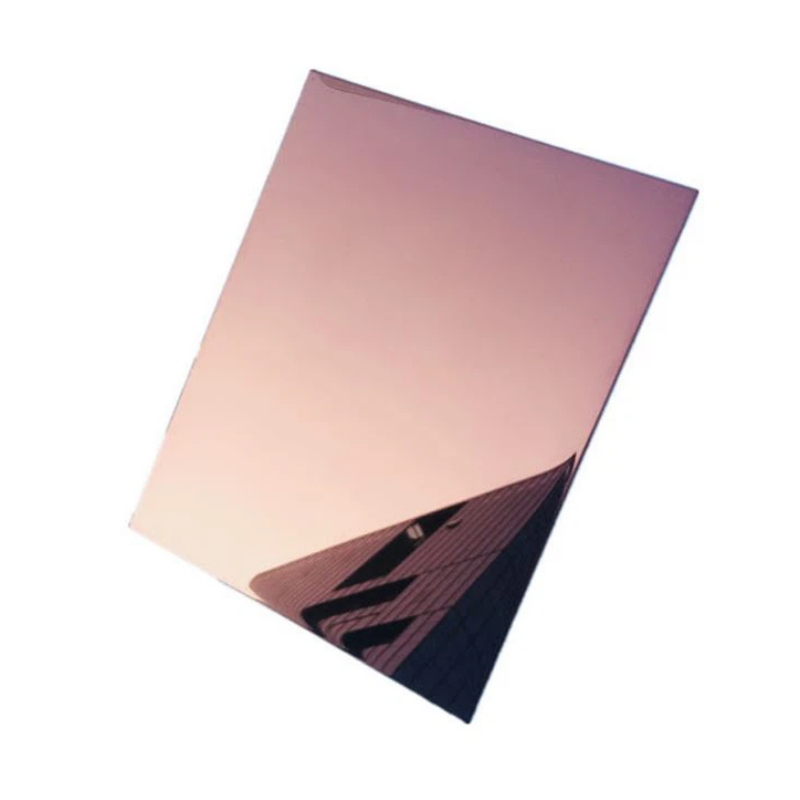

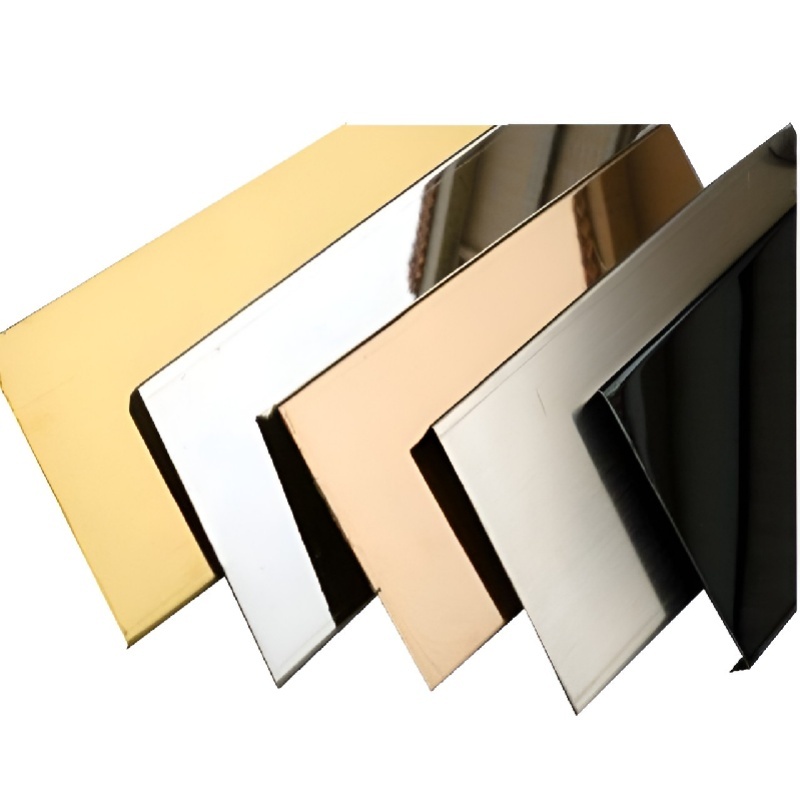

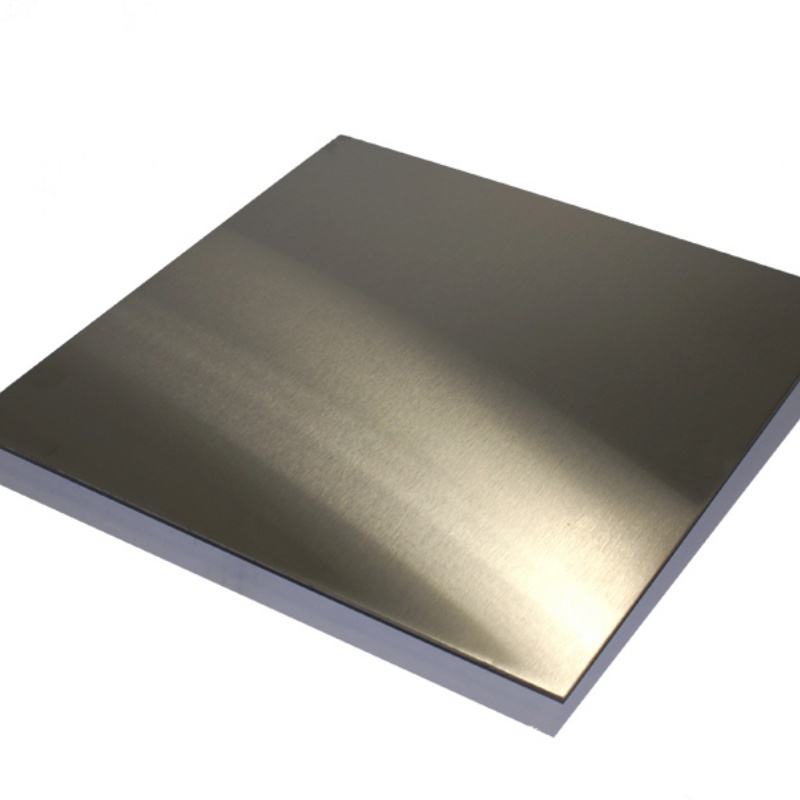

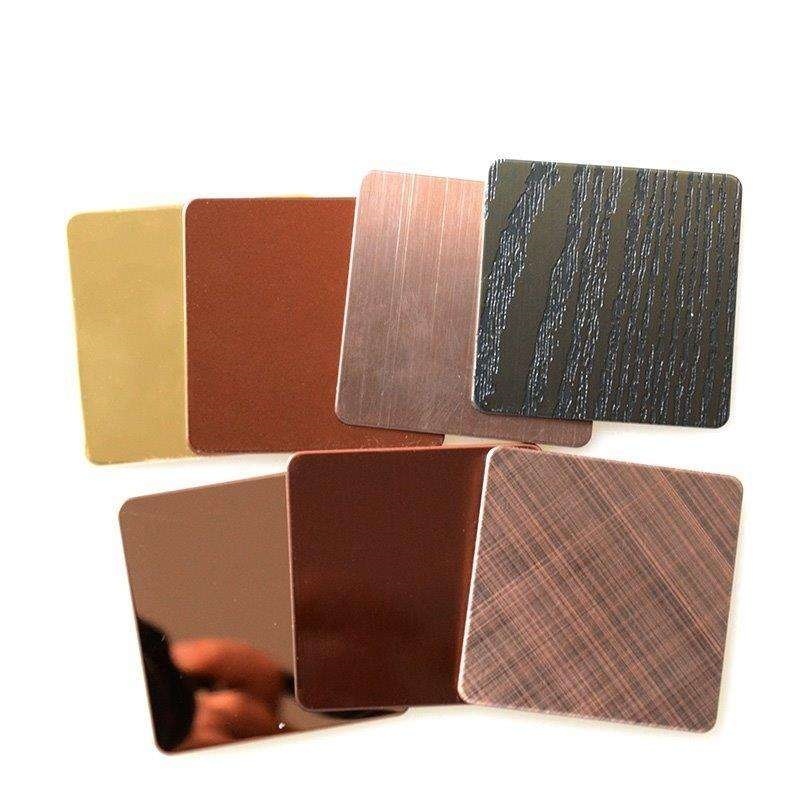

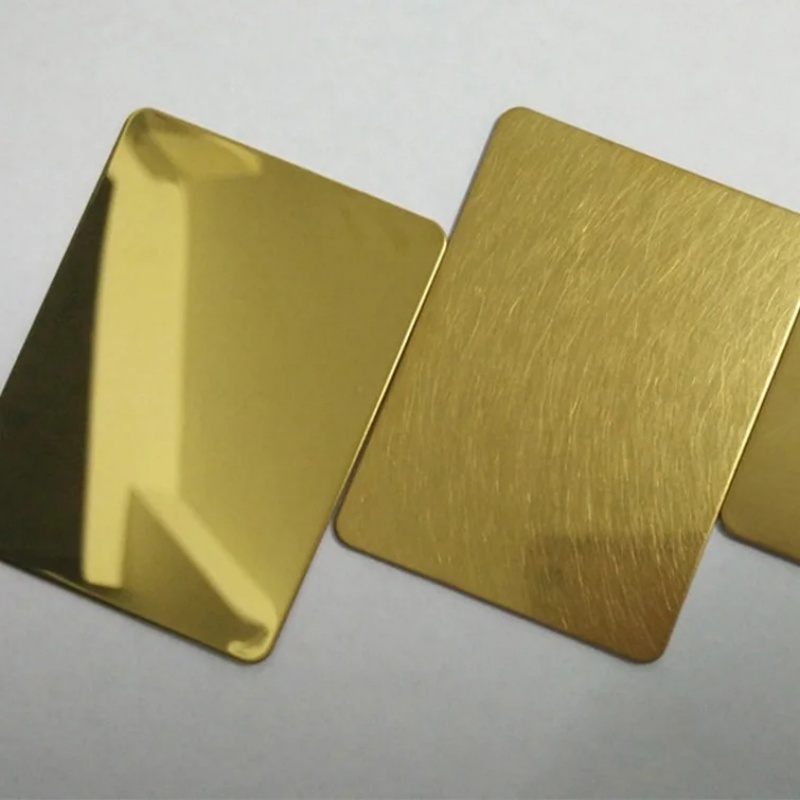

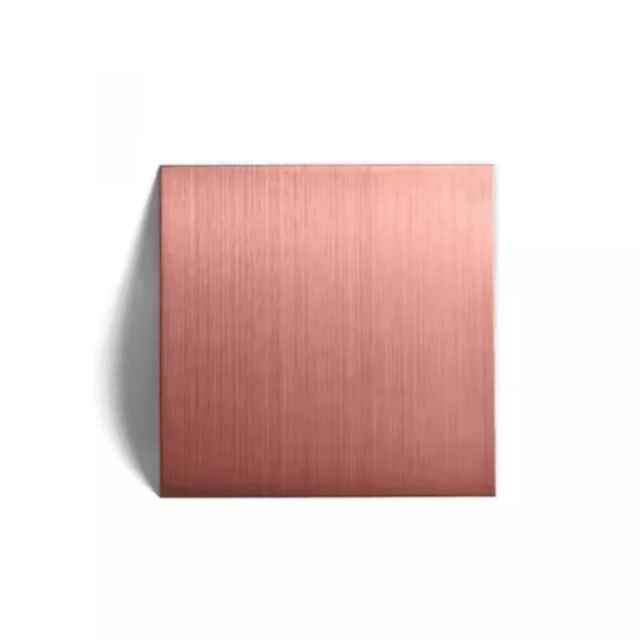

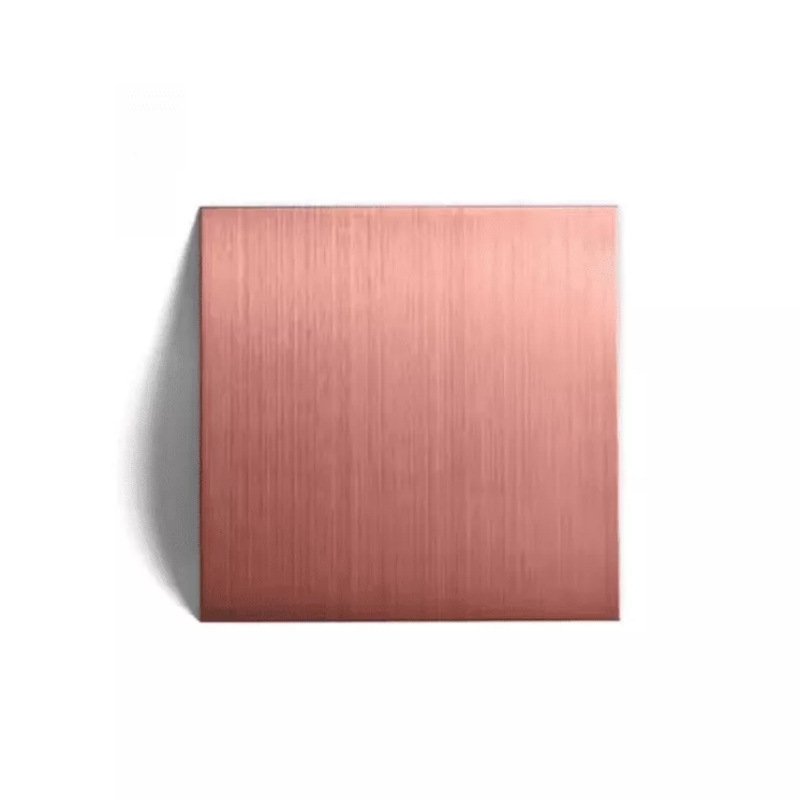

Colored Stainless Steel Plate Description
Colored stainless steel plate is one of the most popular decorative steel plates across the globe for a mix of its aesthetic and functional characteristics. Colored stainless steel plate is mainly composed of iron, chromium and nickel, with an additional surface coloring process such as PVD coating or electrochemical coloring. This combination not only provides outstanding oxidation resistance and corrosion resistance but also offers a rich variety of colors including gold, black, bronze, blue, rose gold, and more.
Colored stainless steel plate is a versatile material with stronger anti-rust properties than 200 series stainless steel materials. It is also better in terms of high temperature resistance and scratch resistance. The colored stainless steel plate has a smooth, uniform surface, high plasticity, toughness and mechanical strength, along with excellent resistance to acids, alkaline gases, solutions and other media. The color layer does not fade or peel easily, ensuring long-lasting decorative effects.
Due to its good versatility, attractive appearance and relatively low cost, colored stainless steel plate is widely used in architectural decoration (such as elevators, curtain walls, and ceilings), kitchen equipment, home appliances, automotive trim, signage, and interior design fields.
|
Surface Finish
|
Definition
|
Application
|
|
2B
|
Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given
appropriate luster. |
Medical equipment, Food industry, Construction material, Kitchen utensils.
|
|
BA
|
Those processed with bright heat treatment after cold rolling.
|
Kitchen utensils, Electric equipment, Building construction.
|
|
NO.3
|
Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001.
|
Kitchen utensils, Building construction.
|
|
NO.4
|
Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001.
|
Kitchen utensils, Building construction, Medical equipment.
|
|
HL
|
Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size.
|
Building construction
|
|
NO.1
|
The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling.
|
Chemical tank, pipe.
|
 |
 |
 |
 |
