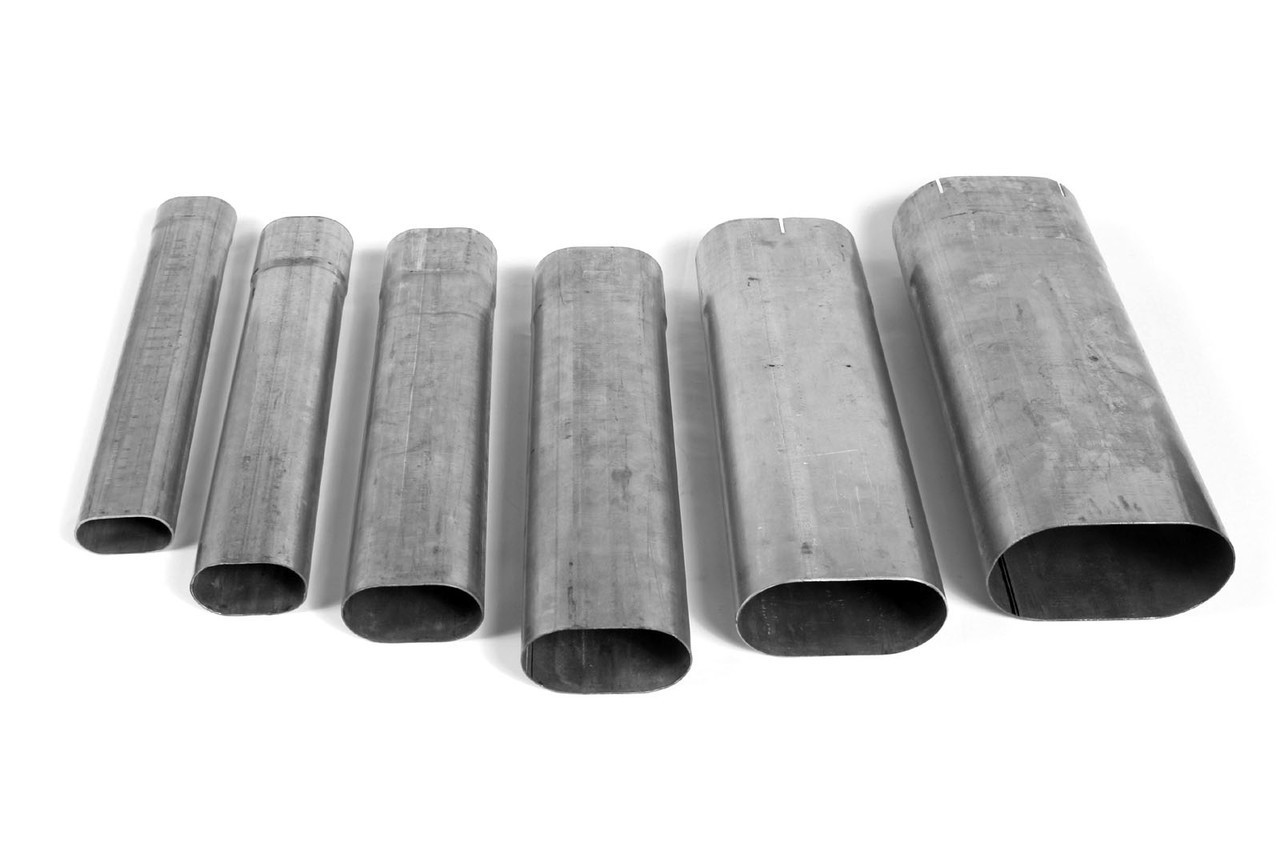

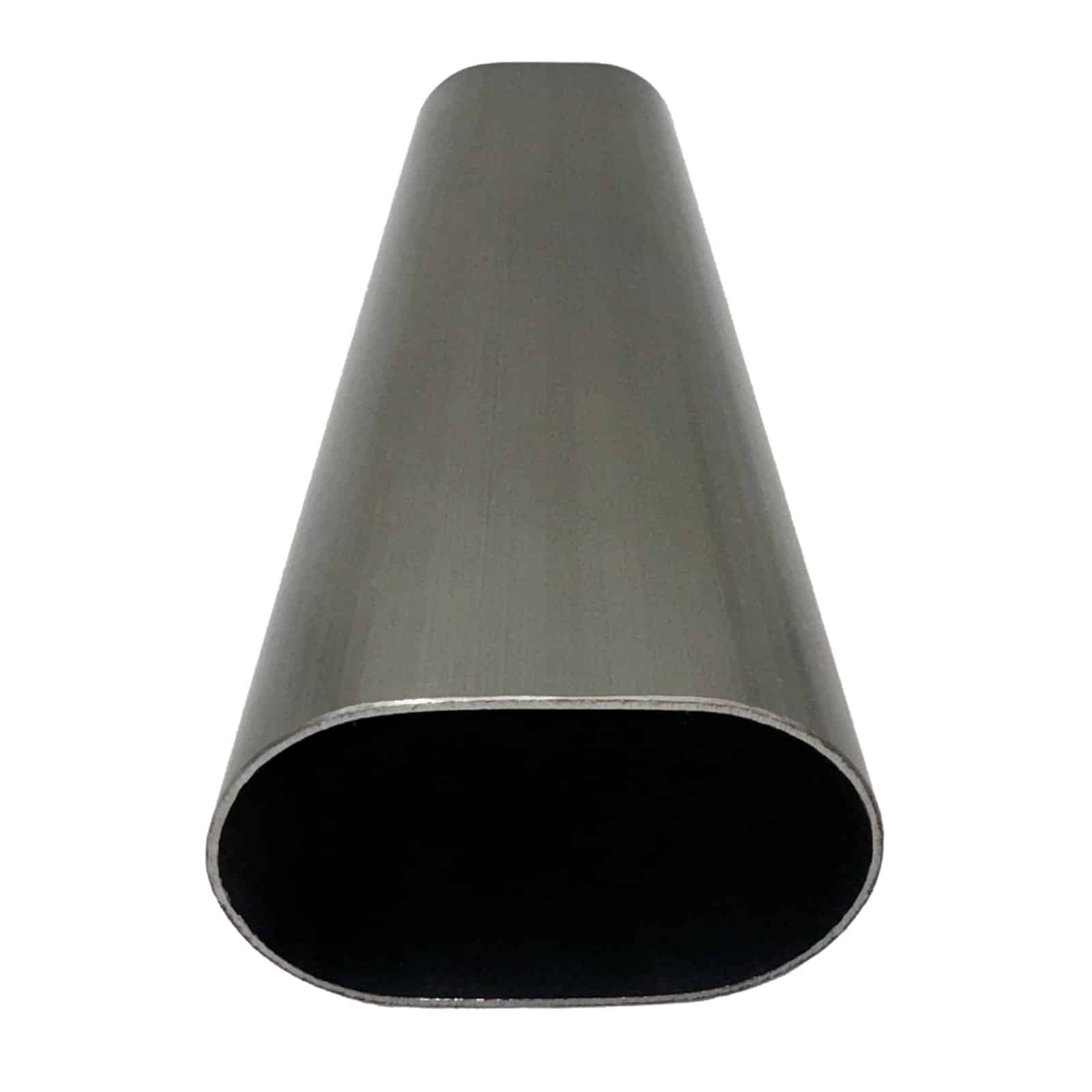

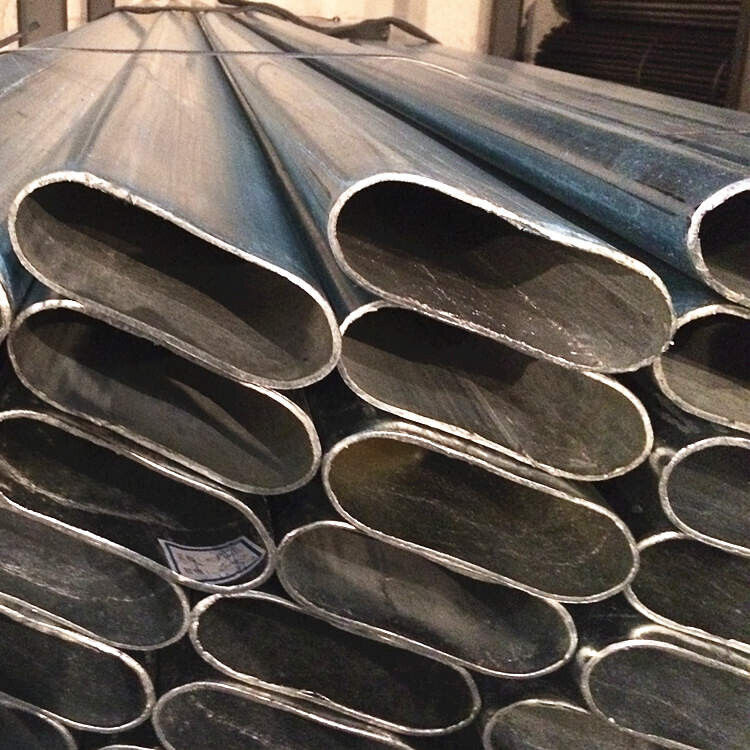

Oval steel pipe is a stainless steel pipe with an oval cross-section.Features of Oval tube:oval steel tube has many excellent properties of stainless steel, such as strong corrosion resistance, high strength, strong toughness, high and low temperature resistance, hygienic and easy to clean; at the same time, the "oval" shape makes it more space-saving than a round shape, and more recognizable than a round pipe, increasing the beauty of the product. At the same time, oval stainless tube can also meet different appearance requirements during processing and customization.oval steel tube is widely used in decoration engineering, industrial pipelines, sports equipment and medical equipment.
Email : contact@zunkaisteel.com
Phone/Whatapp:+86 15169002039
Addess : Huaiyin District,Jinan City,Shandong,China.
| Long axis（mm） | Short Axis（mm） | Wall thickness（mm） |
|---|---|---|
| 20 | 10 | 0.5、0.8、1.0、1.2、1.5、2.0、2.5、3.0、4.0、5.0 |
| 21 | 16 | 1.5、2、3 |
| 23.5 | 13.3 | 1.5 |
| 25.4 | 12.7 | - |
| 30.5 | 17.5 | 1.5 |
| 32.5 | 16.5 | 1.5、2、3 |
| 39.5 | 20.5 | 1.5 |
| 40 | 20 | 1.5 |
| 43 | 30 | 1.5 |
| 47 | 25 | 1.5 |
| 49 | 24.5 | 1.5、2、3 |
| 50 | 36 | 2 |
| 50 | 38 | 1.5、2、3 |
| 60 | 40 | 1.5、2、3 |
| 61 | 37 | 1.5、2 |
| 76.2 | 38.1 | - |
| 77.5 | 39.5 | 1.5、2、3 |
| 88.5 | 61.5 | 1.5、2、3 |
| 90 | 45 | 1.5、2、3 |
| 100 | 50 | - |
| 101.6 | 50.8 | - |
| 110 | 63 | 1.5、2、3 |
| 120 | 50 | 1.5、2、3 |
| 120 | 81 | 1.5、2、3 |
| 129 | 68 | 1.5、2、3 |
| 146 | 76 | 1.5、2、3 |
| 164 | 87 | 1.5、2、3 |
| 170.5 | 103 | 1.5、2、3 |
| 197 | 103 | 1.5、2、3 |
