Product Name
|
Stainless Steel Discs
|
|
Length
|
as required
|
|
Width
|
as required
|
|
Thickness
|
0.1-100 or as required
|
|
Standard
|
AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc
|
|
Technique
|
Hot rolled / cold rolled
|
|
Surface Treatment
|
2B or according to customer requirement
|
|
Thickness Tolerance
|
±0.01mm
|
|
Material
|
201, 202, 301, 302, 303, 304, 304L, 304H, 310S, 316, 316L, 317L, 321,310S 309S, 410, 410S,420, 430, 431, 440A,904L
|
|
Application
|
It is widely used in high temperature applications, medical devices, building materials, chemistry, food industry, agriculture,
ship components. It also applies to food, beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs, and screen. |
|
MOQ
|
1 ton , We can accept sample order.
|
|

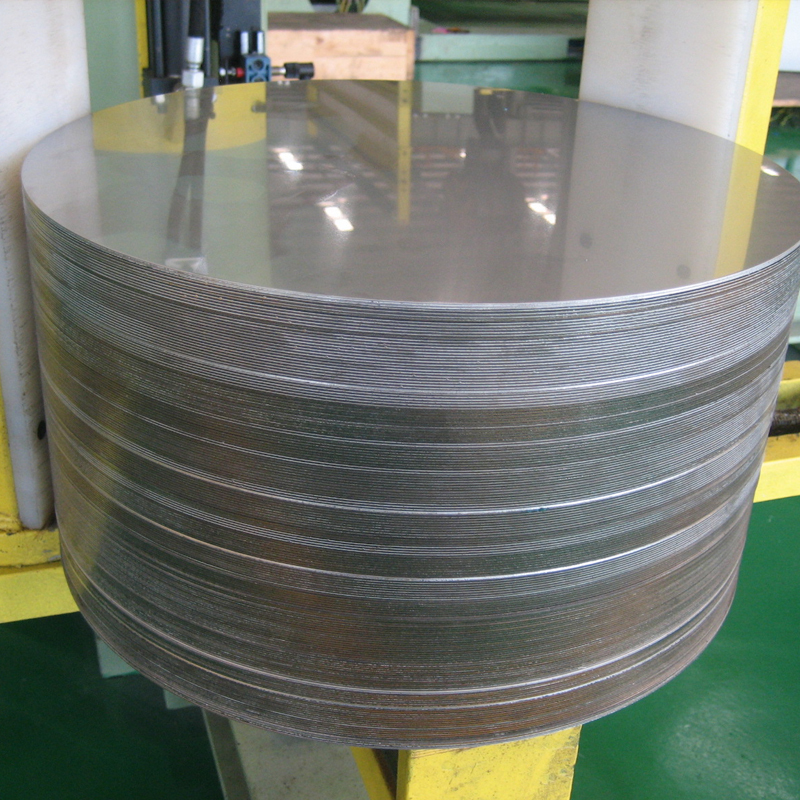

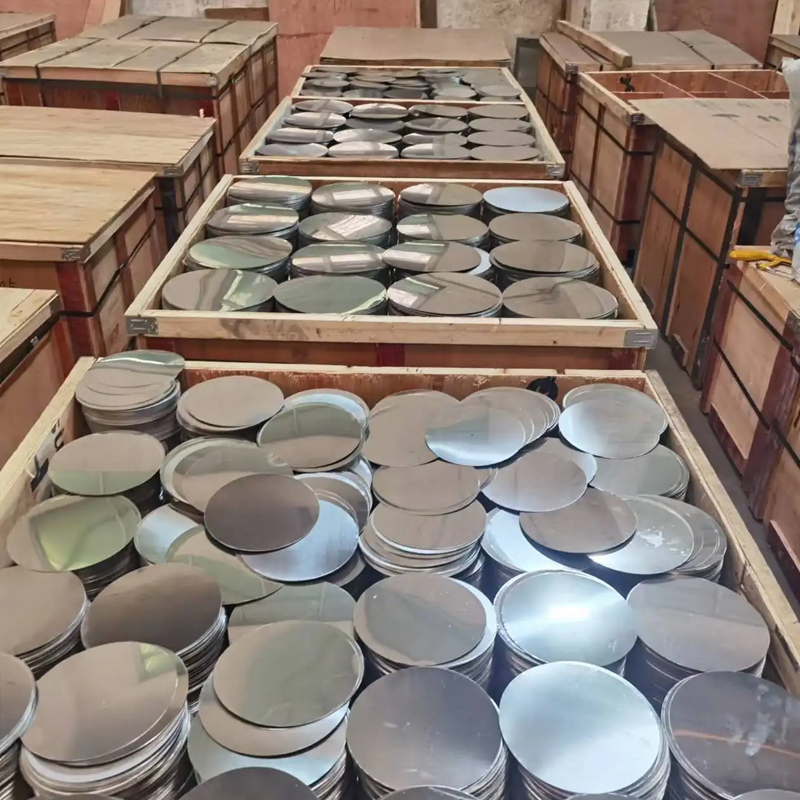

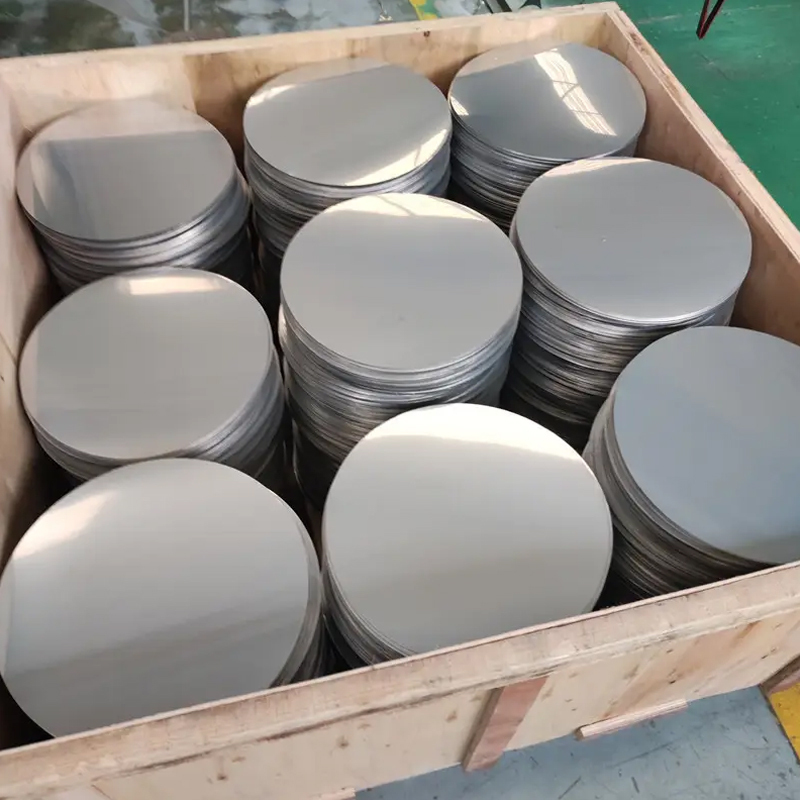

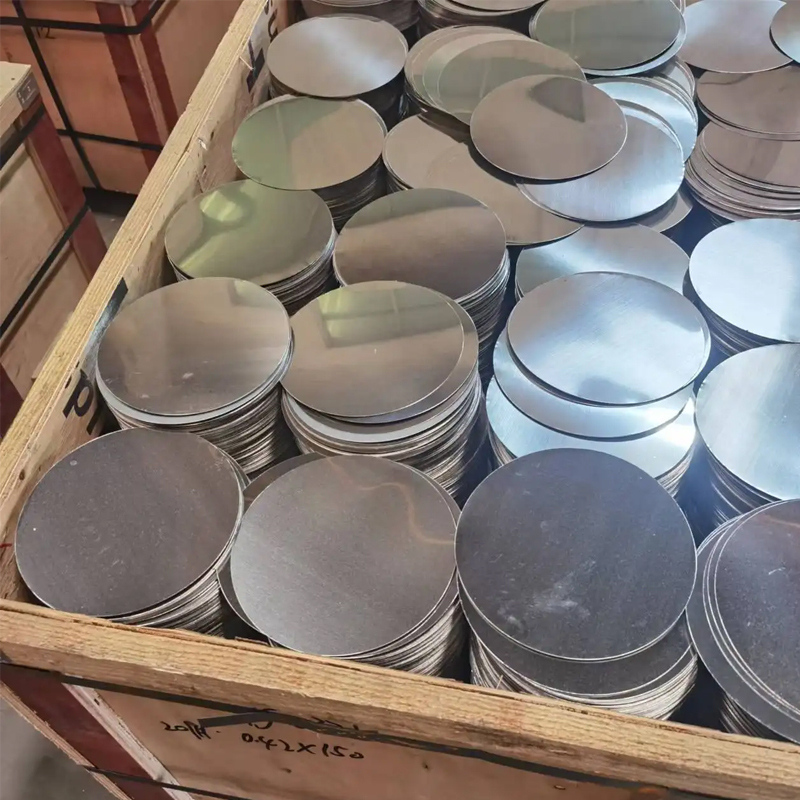

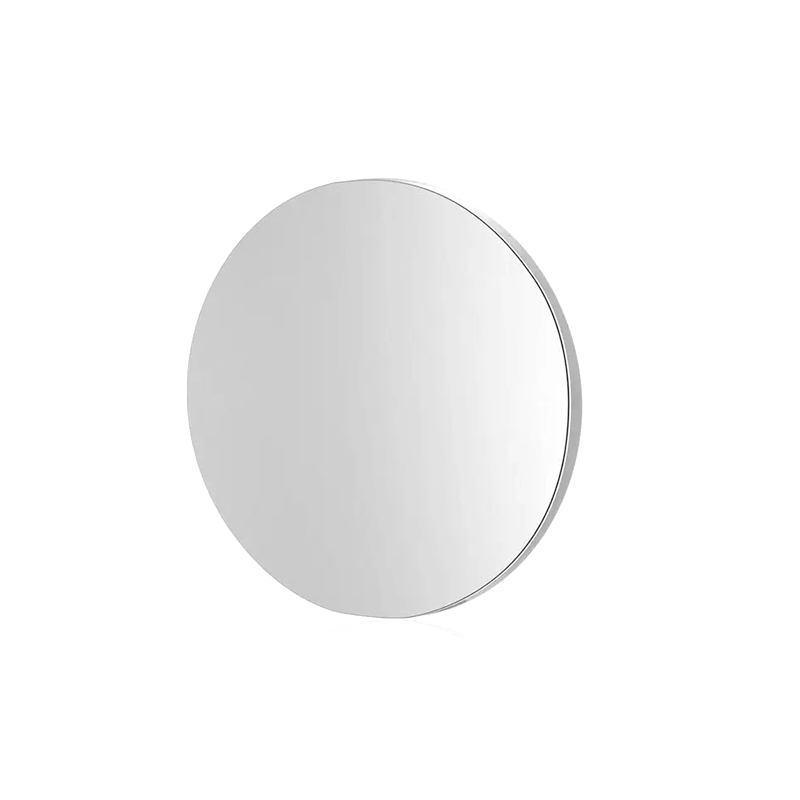

Stainless Steel Discs Information
|
|||||||||
|
Technique |
Surface Finish
|
Grade Series
|
Thickness(mm)
|
Width(mm)
|
|||||
|
Main Dimension
|
|||||||||
|
20-850
|
1000
|
1219
|
1240
|
1250
|
1500
|
||||
|
Hot Rolled
|
No.1 / 2E
|
201/304/316L
|
2.2-12.0
|
√
|
√
|
√
|
√
|
|
√
|
|
Cold Rolled |
2B
|
201/304/316L
|
0.25-3.0
|
√
|
√
|
√
|
√
|
√
|
√
|
|
410S/430
|
410S/430
|
0.25-3.0
|
√
|
√
|
√
|
|
√
|
||
|
No.4 /Hairline
Mirror / Linen
SB
|
201/304/316L
|
0.22-3.0
|
√
|
√
|
√
|
√
|
√
|
√
|
|
|
410S/430
|
410S/430
|
0.25-3.0
|
√
|
√
|
√
|
√
|
√
|
||
|
BA
|
201/304
|
0.2--1.8
|
√
|
√
|
√
|
√
|
√
|
√
|
|
|
410S/430
|
410S/430
|
0.25-3.0
|
√
|
√
|
√
|
|
|
||
|
|
2BA
|
304/410S/430
|
0.25-2.0
|
√
|
√
|
√
|
√
|
|
|
|
If you need, we can customize the size according to your requirements
|
|||||||||
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 |
≤0.75 |
5.5-7.5 | ≤0.06 | ≤0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 202 | ≤0.15 | ≤1.0 | 7.5-10.0 | ≤0.06 | ≤0.03 | 4.-6.0 | 17.0-19.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 |
12.0-15.0 |
16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-13.0 | 17.0-19.0 | - |
| 630 | ≤0.07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤2.0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.80 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤0.03 | 0.19-0.22 | 0.24-0.26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤0.03 | ≤0.60 | 16.0-18.0 | - |
|
Surface Finished
|
Characteristics
|
Characteristics
|
|
NO.1
|
Finished by hot-rolling, smoother and pickling, characterized by white pickled surface.
|
Chemical industry equipment, Industrial tanks.
|
|
2B
|
Finished by anneal treatment, pickling after cold rolling, followed by skin pass line to more brighter and smoother surface.
|
General application medical instruments, Tableware.
|
|
BA
|
Bright anneal treatment after cold rolling.
|
Kichen utenstil, Kitchen ware,Architectural purpose.
|
|
NO.4(Satin)
|
Finished by incontinuous linear brushing
|
Architecture,industries,Escalators, Kitchen ware, Vehicles.
|
|
Hairline
|
Finished by continuous linear brushing
|
|
|
8K(mirror)
|
A mirror-like reflective surface by polishing with finer abrasives over 800 mesh.
|
Refletor, Mirror, Interior- Exterior decoration for building.
|
